86” LCD Monitor
|
|
| ㆍ상품코드 |
: G58BF6C0AB0739 |
|
|
86” LCD Monitor |
|
|
|
|
|
 |
|
|
Specifications
| MODEL | DSMMS-86U01 | | PANEL | | Operation | | | Control Board | T.MS3393.U702K | Operating Temperature | 0℃~40℃ | | PANEL | LG ISP | Humidity | 10% ~ 80% | | Screen Size | 86" (218cm) | | Aspect Ratio | 16:9 | Life Time | 50,000 Hrs | | Native Resolution | 3,840 x 2,160(UHD) | Operation Time | 24 Hours per day | | Brightness | 500cd /㎡ | Power Input Condition | | | Max. Contrast Ratio | 1,300 : 1 | Input Voltage | AC 100V to AC240V | | Dynamic Contrast Ratio | 4,000,000:1 | Normal Frequency | 50/60Hz | | Viewing Angle (H x V) | 178 x 178 | Physical Specication | | | Resp이see Time | 8ms | Bezel Color | Black, White, Silver, | | Color Depth | 1.06 Billion | Bezel Thickness(mm) | 28 (Right/Left/Top/Bottom) | | Power Consumption | 275W(typ) / 193W(nor) | Monitor size (mm) | 1,926(W) x 1097(H) x 86.6(D) | |
Display Direction | Support
Horizontal
and Vertical direction | Weight | 82kg | | VESA size (mm) | 600 x 400 | | Connectivity | | Accessory | | |
Input Interface | HDMI, DP, DVI-D, RGB,
Audio,
SD Card | Accessory | Remote
Control unit,
2xAAA Battery,
Power Cord, Manual and etc. | | | | Output Interface | DP, Audio, External Speaker | Option |
Internal speaker, Stander,
Pixel sensor,VESA Adaptor ,
Wall mounted Bracket,
Touch screen and etc. | |
Control | RS232C
in, RJ45, IR Receiver,
Pixel Sensor, USB 3.0, SD Card | |
Ultra High Definition

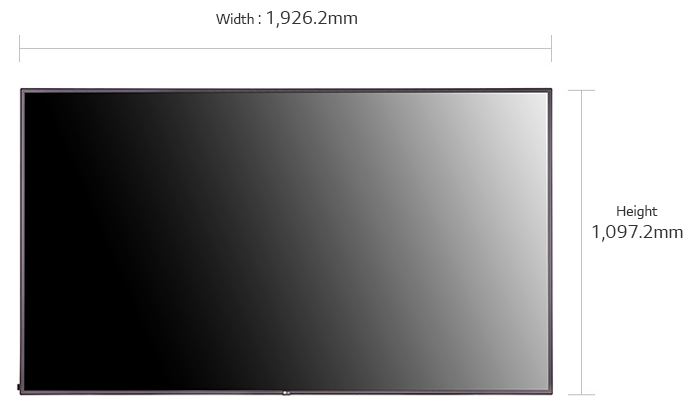

Dimension
|
|
|
