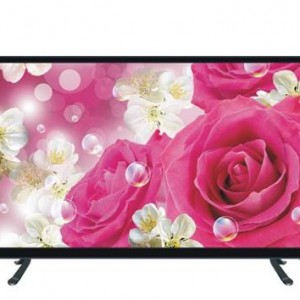

75” LCD Monitor
|
|
|
|
|
|
|
|
 |
|
|
Specifications
| MODEL | DSMMS-75U01 | DSMMS-75S02 | | Control Board | T.MS3393.U702K | T.MS3393.S702K | | PANEL | LG ISP | | Screen Size | 75" (190cm) | | Aspect Ratio | 16:9 | | Native Resolution | 3,840 x 2,160(UHD) | 1,920×1,080 (FHD) | | Brightness | 500cd /㎡ | 3000cd /㎡ | | Max. Contrast Ratio | 1,200 : 1 | 1,000 : 1 | | Dynamic Contrast Ratio | 4,000,000:1 | 500,000:1 | | Viewing Angle (H x V) | 178 x 178 | | Resp이see Time | 6ms | | Color Depth | 16.7 M | | Power Consumption | 240W(typ) / 170W(nor) | 750W(typ) / 450W(nor) | | Display Direction | Support Horizontal and Vertical direction | | Operating
Temperature | 0℃~40℃ | | Humidity | 10% ~ 80% | | Life Time | 50,000 Hrs | | Operation Time | 24 Hours per day | | Input Voltage | AC 100V to AC240V | | Normal Frequency | 50/60Hz | | Bezel Color | Black, White, Silver, | | Bezel Thickness(mm) | 28 (Right/Left/Top/Bottom) | 12.8 (Right/Left/Top/Bottom) | | Monitor size (mm) | 1,663(W) x 985(H) x 81.7(D) | 1,633(W) x 956(H) x 81.7(D) | | Weight | 80kg | 95kg | | VESA size (mm) | 600 x 400 | | Input Interface | HDMI, DP, DVI-D, RGB, Audio, SD Card | | Output Interface | DP, Audio, External Speaker | | Control | RS232C in, RJ45, IR Receiver, Pixel Sensor, USB 3.0, SD Card | | Accessory | Remote Control unit, 2xAAA Battery, Power Cord, Manual and etc. | | Option | Internal speaker, Stander, Pixel sensor,VESA Adaptor ,
Wall mounted Bracket, Touch screen and etc. |
|
|
|
