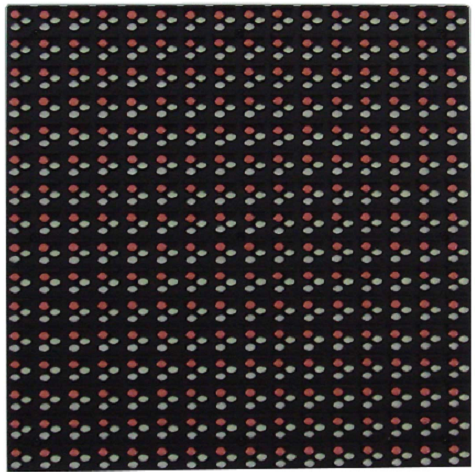

DSS-P20 OUT DOOR LED MODULE
|
|
| ㆍ상품코드 |
: DSS-P20 OUT DOOR LED MODULE |
|
|
LED Screen Display-P20 OUT DOOR LED MODULE |
|
|
|
|
|
 |
|
| SPECIFICATION | | LED Configuration | DIP346 | | Pixel Pitch | 20mm | | Viewing Distance | 20M~100M | | Viewing Angle | H:120 deg. V:60 deg. | | Refresh Rate | 500 - 1200Hz | | Color Processing | 16bit | | Pixel Configuration | 1R, 1G, 1B | | Module Size | 320mm X 320mm | | Module Resolution | 16 X 16 | | Driving Mode | Static Constant Current Drive | | Brightness | 7500CD/㎡ | | Grey Scale | 4096Levels | | Power Consumption | 44.7W |
|
|
|
