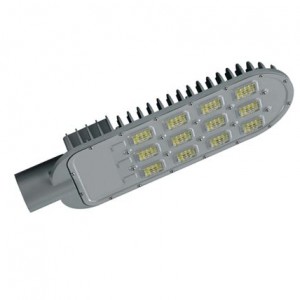

LED Street Light
|
|
| ㆍ상품코드 |
: G588166D2CAB93 |
|
|
100W/120W/150W/200W |
|
|
|
|
|
 |
|
|
Specifications Ⅰ
|
SPEC
|
DSMSF-ST-12-Series
|
|
Input
Voltage(V)
|
AC 90V ~ 300V
|
|
Frequency
|
50/60Hz
|
|
Power
Consumption(W)
|
100W
~ 200W
|
|
Color Temperature
|
3,000K
~ 6,500K
|
|
Luminous
Flux
|
12,233lm
~ 23,628 lm
|
|
Lm/W
|
≥120
|
|
Color Index (CRI)
|
≥80
|
|
IP
Rate
|
IP67
|
|
Life Time
|
50,000hrs
|
|
Beam
Angle
|
170°
|
|
Net
Weight
|
4.5
Kg
|
|

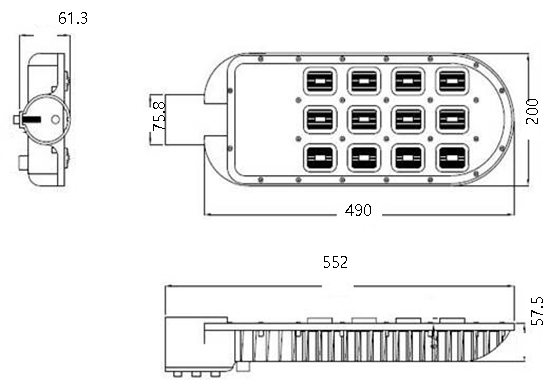

Size(mm)
|
553
X 200 X 82mm
|
|
Certification
|
KS, CE, High
efficiency
|
|
Option
|
Dimming
|
Specifications Ⅱ
|
Model
|
Watts
|
Lumen
|
CRI_Ra
|
|
ST-12-100W
|
100W
|
12,233
lm
|
80
|
|
ST-12-120W
|
120W
|
14,721
lm
|
83
|
|
ST-12-150W
|
150W
|
18,040
lm
|
83
|
|
ST-12-200W
|
200W
|
23,628
lm
|
82
|

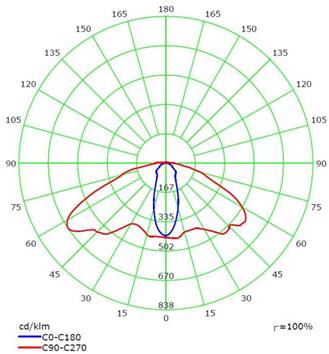

Photometric
Data
|
|
|
