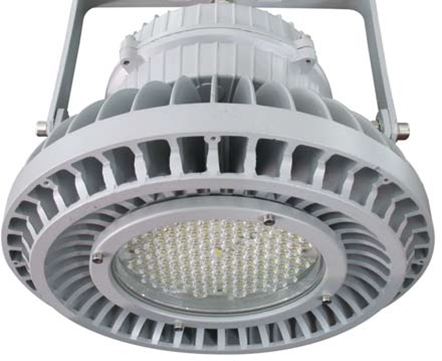

LED High Bay Light
|
|
| ㆍ상품코드 |
: G58816AAF7B94B |
|
|
120W/150W/180W/200W |
|
|
|
|
|
 |
|
|
Specifications Ⅰ
|
SPEC
|
DSMOF-HBL-Series
|
|
Input
Voltage(V)
|
AC 90V ~ 300V
|
|
Frequency
|
50/60Hz
|
|
Power
Consumption(W)
|
120W
~ 200W
|
|
Color Temperature
|
3,000K
~ 6,500K
|
|
Luminous
Flux
|
14,400lm ~ 24,096lm
|
|
Lm/W
|
≥120
|
|
Color Index (CRI_Ra)
|
≥80
|
|
IP
Rate
|
IP65
|
|
Life Time
|
50,000hrs
|
|
Lens
Angle
|
11°/46°/64°/120°
|
|
Net
Weight
|
6.3
Kg
|
|
Certification
|
KS,
High
efficiency
|
|
Option
|

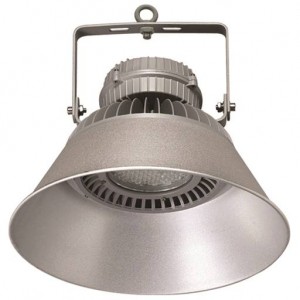

Lampshade , Loop Bracket
|
Specifications Ⅱ
|
Model
|

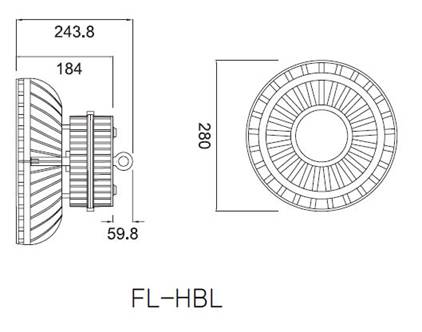

Dimension
|
Watts
|
Lumen
|
|
HBL-120W
|
Ø280 X
243mm
|
120W
|
14,400
lm
|
|
HBL-150W
|
Ø280 X
243mm
|
150W
|
17,890
lm
|
|
HBL-180W
|
Ø280 X
243mm
|
180W
|
21,299
lm
|
|
HBL-200W
|
Ø280 X
243mm
|
200W
|
24,096
lm
|
Photometric
Data
|
|
|
