LED Flat Light (Edge)
|
|
| ㆍ상품코드 |
: G587EC47C9F162 |
|
|
20W/40W |
|
|
|
|
|
 |
|
|
Specifications Ⅰ
|
SPEC
|
DSM-PL-T
Series
|
|
Input
Voltage(V)
|
AC 165V ~ 245V
|
|
Frequency
|
50/60Hz
|
|
Power
Consumption(W)
|
20W/40W
|
|
Color Temperature
|
2,800K
~ 6,500K
|
|
Luminous
Flux
|
2,100lm
~ 4,200lm
|
|
Lm/W
|
≥105
|
|
Color Index (CRI_Ra)
|
≥80
|
|
IP Rate
|
IP44
|
|
Life Time
|
40,000hrs
|
|
Beam
Angle
|
165°
|
|
Net
Weight
|
1.6
- 3.4 Kg
|
|
Certification
|
CE
|

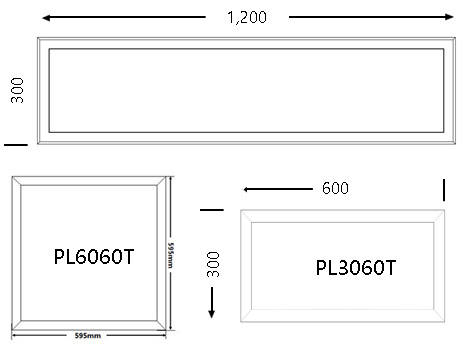

Specifications Ⅱ
|
Model
|
Dimension
|
Watts
|
Lumen
|
|
PL3060T
|
300
X 300 X 9mm
|
20W
|
2,100
lm
|
|
PL6060T
|
600
X 600 X 9mm
|
40W
|
4,200
lm
|
|
PL3012T
|
300
X 1,200 X 9mm
|
40W
|
4,200
lm
|

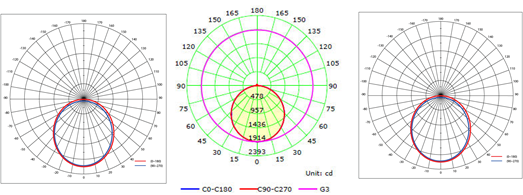

Photometric
Data
|
|
|
