DSM-R-Series-FR
ㆍ상품코드 : G587EB82776714
DSM-R-Series-FR

Specifications



SPEC

DSMITJ-R-Series

Input Voltage(V)

AC 165V ~ 245V

Frequency

50/60Hz

Power Consumption(W)

5W ~ 16W

Color Temperature

3,000K ~ 5,000K

Luminous Flux

450lm ~ 1,440lm

Lm/W

≥90

Color Index (CRI_Ra)

≥80

Light Base

E27

Life Time

30,000hrs

Beam Angle

120°

Net Weight

30g ~ 70g

Certification

CE, RoHS, GS, TUV



Specifications


Model

Dimension

Watts

Lumen

R50

Ø50 X 90mm

5W

450 lm

R63

Ø65 X 103mm

7W

630 lm

R63

Ø65 X 103mm

9W

810 lm

R80

Ø80 X 108mm

12W

1,080 lm

R95

Ø95 X 133mm

16W

1,440 lm

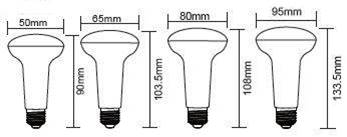

Dimension

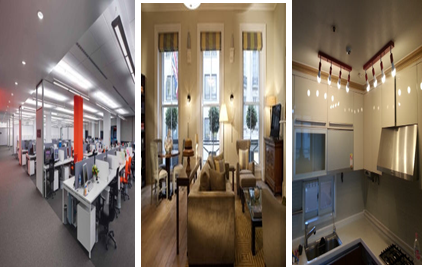

          Office                    Living Room                 Kitchen
