LED Down Light
ㆍ상품코드 : G587EBA6288FF4
5W/7W/9W

Specifications


SPEC

DSM-DL-Rotatable

Input Voltage(V)

AC 165V ~ 245V

Frequency

50/60Hz

Power Consumption(W)

5W, 7W, 9W

Color Temperature

3,000K ~ 6,000K

Lm/W

≥95

Color Index (CRI_Ra)

≥80

IP Rate

IP20

Life Time

40,000hrs

Beam Angle

90° + 36°(Adjustable)

Cutting size

Ø70 mm

Net Weight

0.163 ~ 0.377 Kg

Option

Diming, COB

Certification

CE, ROHS



Specifications


Model

Dimension

Watts

Lumen

DL-5W-RO

Ø85 x 72 mm

5W

480 lm

DL-7W-RO

Ø85 x 72 mm

7W

590 lm

DL-9W-RO

Ø85 x 72 mm

9W

750 lm

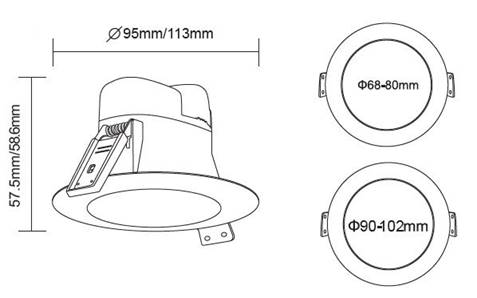

Dimension
