Specifications Ⅰ
|
SPEC
|
DSMITJ-RP--Series
|
|
Input
Voltage(V)
|
AC 85V ~ 265V
|
|
Frequency
|
50/60Hz
|
|
Power
Consumption(W)
|
3W
~ 18W
|
|
Color Temperature
|
3,000K
~ 6,500K
|
|
Luminous
Flux
|
390lm ~ 1,500lm
|
|
Lm/W
|
≥75
|
|
Color Index (CRI_Ra)
|
≥80
|
|
IP
Rate
|
IP40
|
|
Life Time
|
30,000hrs
|
|
Beam
Angle
|
95°
|
|
Net
Weight
|
0.163 ~ 0.42
Kg
|
Specifications Ⅱ
|
Model
|
Dimension(mm)
|
Cutting
|
Lumen
|
|
RP-3”-6W
|
Ø115 X
31
|
Ø100-110 mm
|
390
lm
|
|
RP-3”-9W
|
Ø115 X
31
|
Ø100-110 mm
|
500
lm
|
|
RP-5”-12W
|
Ø170 X
32
|
Ø150-160 mm
|
890
lm
|
|
RP-5”-16W
|
Ø170 X
32
|
Ø150-160 mm
|
1180
lm
|
|
RP-7”-18W
|
Ø220 X
32
|
Ø200-210 mm
|
1450
lm
|
|
RP-8”-20W
|
Ø240 X
32
|
Ø220-230 mm
|
1,500
lm
|
Photometric

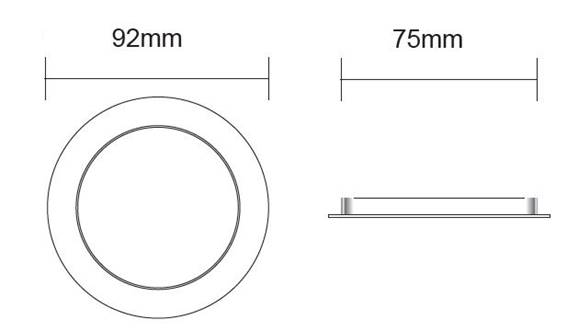

Data Dimension
|
