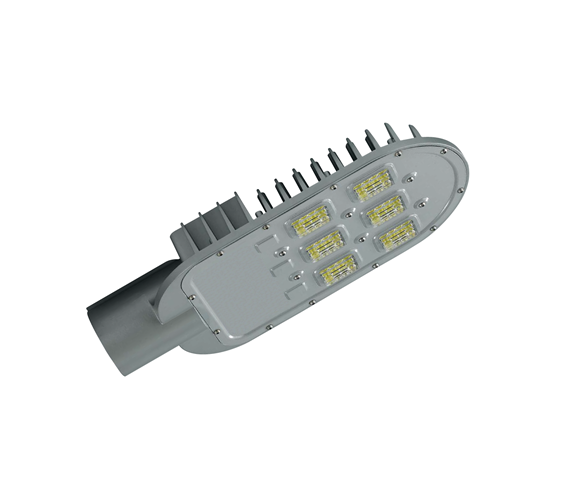

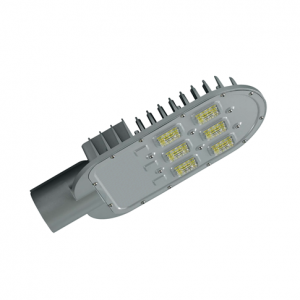

LED Street Light
|
|
| ㆍ상품코드 |
: G588166097C8E0 |
|
|
40W/50W/60W/80W |
|
|
|
|
|
 |
|
|
Specifications Ⅰ
|
SPEC
|
DSMSF-ST-6-Series
|
|
Input
Voltage(V)
|
AC 90V ~ 300V
|
|
Frequency
|
50/60Hz
|
|
Power
Consumption(W)
|
40W
~ 80W
|
|
Color Temperature
|
3,000K
~ 6,500K
|
|
Luminous
Flux
|
4,490lm
~ 8,306lm
|
|
Lm/W
|
≥120
|
|
Color Index (CRI)
|
≥80
|
|
IP
Rate
|
IP67
|
|
Life Time
|
50,000hrs
|
|
Beam
Angle
|
170°
|
|
Net
Weight
|
3
Kg
|
|

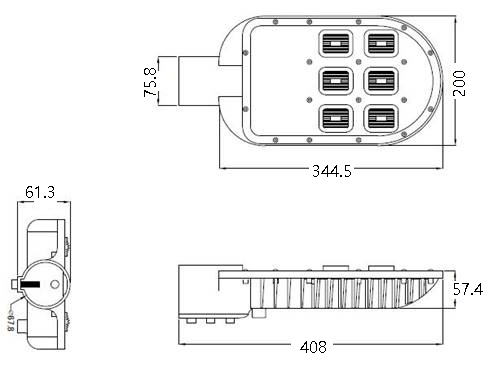

Size(mm)
|
408
X 200 X 82mm
|
|
Certification
|
KS, CE, High
efficiency
|
|
Option
|
Dimming
|
Specifications Ⅱ
|
Model
|
Watts
|
Lumen
|
CRI_Ra
|
|
ST-6-40W
|
40W
|
4,790
lm
|
80
|
|
ST-6-50W
|
50W
|
6,348
lm
|
81
|
|
ST-6-60W
|
60W
|
7,392 lm
|
80
|
|
ST-6-80W
|
80W
|
9,306 lm
|
81
|

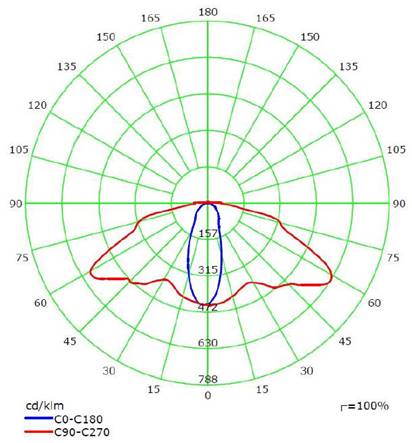

Photometric
Data
|
|
|
