Dimming Controller(PLC)
|
|
| ㆍ상품코드 |
: G58804C3452FDE |
|
|
5KVA |
|
|
|
|
|
 |
|
|
Specifications
|
SPEC
|
DSMSM-A-PLC05K
|
|
Input
Voltage(V)
|
AC 90V ~ 275V
|
|
Frequency
|
50/60Hz
|
|
Rated
Capacity
|
5KVA
|
|
Voltage Accuracy
|
±2 V
|
|
Current Accuracy
|
±2 A
|
|
Interface
|
RS-232C, RS-485
|
|
Operation
|
Graphic User Interface
|
|
LED
Dimming
|
9
Step (100%~20%)
|
|
Power
Reduction
|
1% lower
|
|
Life Time
|
50,000 hrs
|
|
Net
Weight
|
12
Kg
|
|
Size(mm)
|
203
X 365 X 95 mm
|
|
Certification
|
KC, CE
|
Hardware

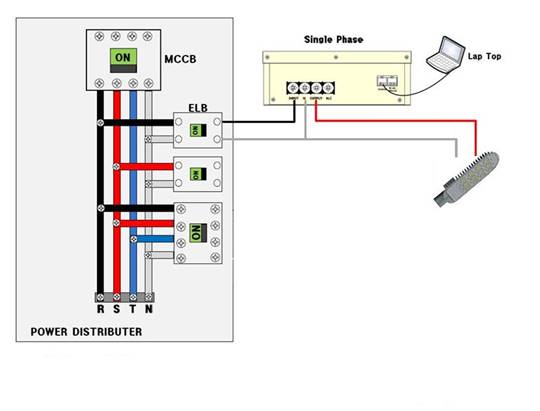

Install Picture

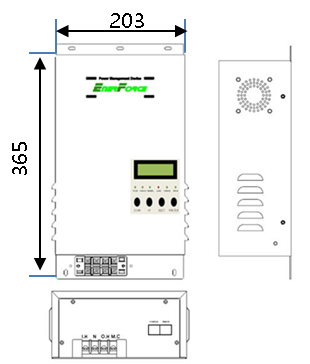

Dimension
|
|
|
